Overview › RS485

RS485 port

A purpose built USB RS485 cable can be plugged into the RS485 port of the inverter. This is an RS485 cable with a specific RJ45 pinout that can be purchased in our online store.

If you buy any random USB RS485 RJ45 cable on Amazon, Ebay, Takealot, etc. which doesn't specifically state that it supports the inverter, it will most likely not work. Note an RS485 cable that says it supports the Deye inverter should work as it uses the same pinout.

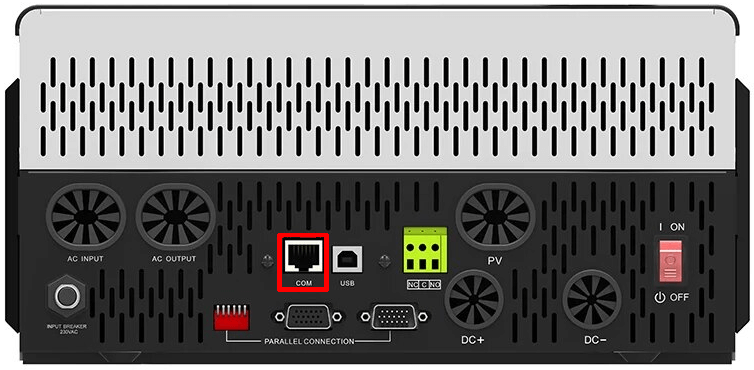

Deye RS485 cableMUST COM/RS485 port

Steps in SolarAssistant

On the configuration page, select "MUST" as your inverter model.

MUST inverter selection

Select the USB port(s) where you have MUST inverters connected. There will typically be one option.

Select MUST USB devices

Click connect:

Select connect

Parallel installations

With this inverters you only need to connect one inverter to read all parallel inverters regardless of whether you use the COM/RS485 port or the USB type B port.

Troubleshooting

If you have any issue, please try the official SolarPowerMonitor application from a laptop. If it works with these official applications, then it should work with SolarAssistant.
