SunSynk/Deye RS485
$34.84
Dispatch within 1 day from Pretoria, South Africa
Nationwide courier: $5.58
International DHL courier: $55.86

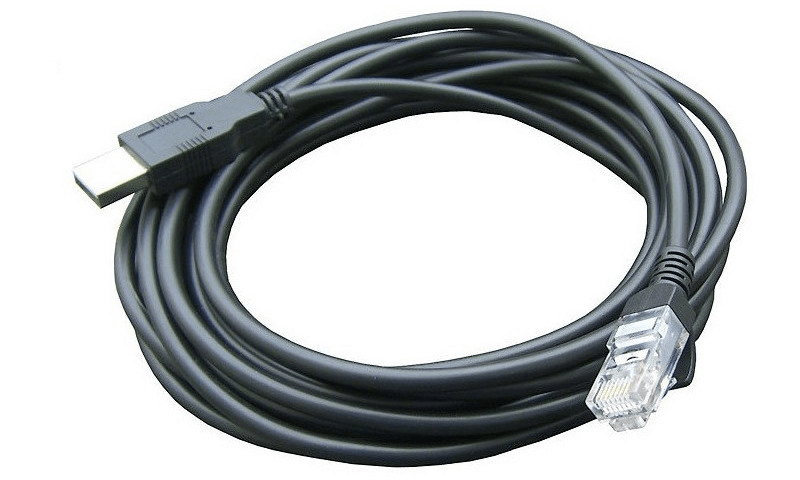

USB cable to connect the inverters listed below to SolarAssistant via the RS485 port:

  • SunSynk
  • Deye
  • Sol-Ark
  • Fusion Hybrid

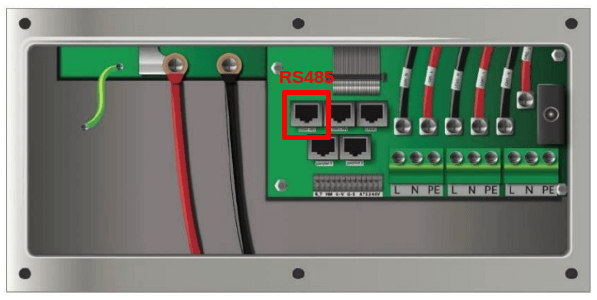

This cable is typically used when your inverter WiFi/RS232 port is occupied by the WiFi data logger. The RS485 port is located inside the inverter. Check that your RS485 port is available before purchasing this cable. Here is the most common location of the port:

SunSynk RS485 port

Specification:

  • USB to RJ45
  • RS485
  • Original FTDI chip
  • Length: 1.5m
  • Shielded

View how to configure in SolarAssistant

* For parallel inverters and 3 phase installations each inverter requires it's own cable.
