Connecting the EG4 GYLL battery

Introduction

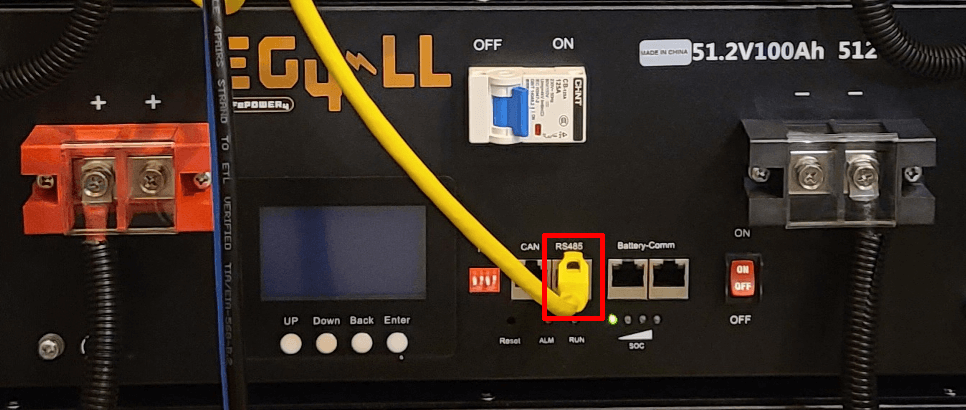

If you buy a EG4 GYLL battery from Signature Solar, you will typically get a USB RS485 adapter and cable with it. This adapter and cable can be used to connect your SolarAssistant Raspberry PI to the battery.

With the latest EG4 firmware if you set the DIP switch to 1 it will change the protocol of the battery. SolarAssistant supports the default protocol of the battery and not the address 1 protocol. Start your DIP switch addresses with the first battery set to 2, the next battery to 3, then 4, etc.

Select the protocol in SolarAssistant that matches your battery:

Battery model Protocol
EG4 LL
EG4 LIFEPOWER4 with LCD 		USB to Modbus RS485
EG4 LIFEPOWER4 without LCD USB to Narada RS485

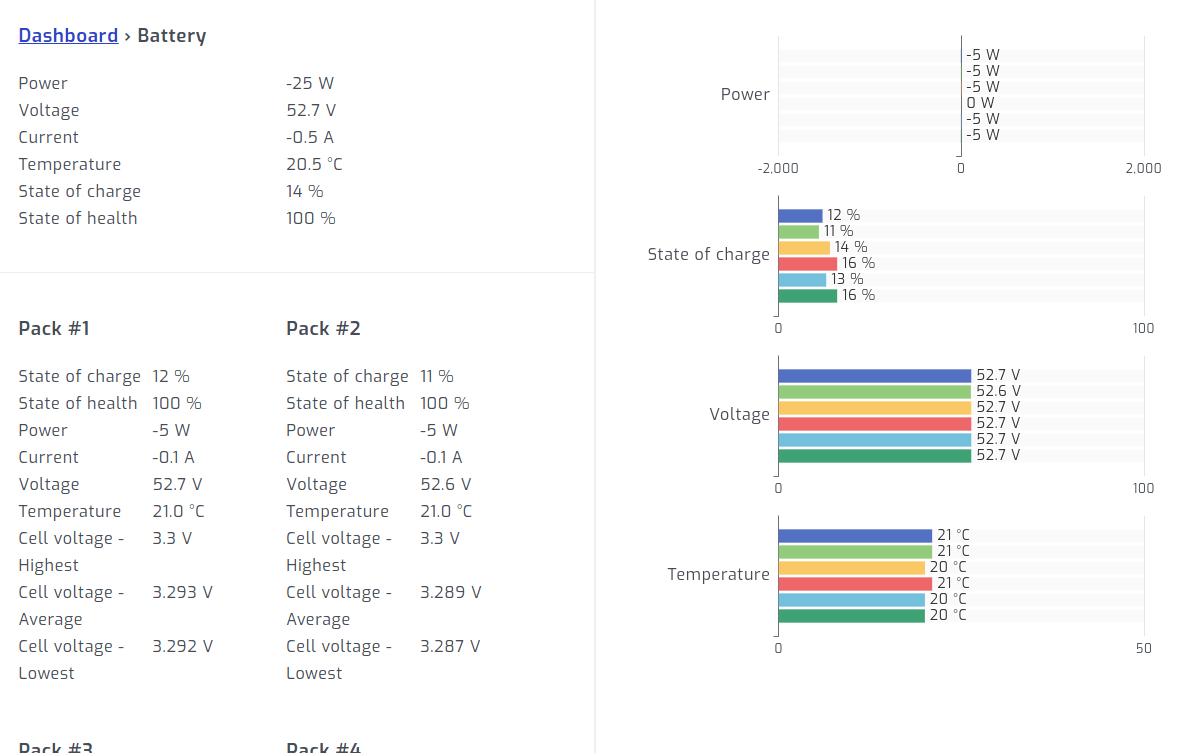

Once connected, you should see individual battery metrics as shown below:

EG4 GYLL SolarAssistant

How to connect multiple EG4 GYLL batteries

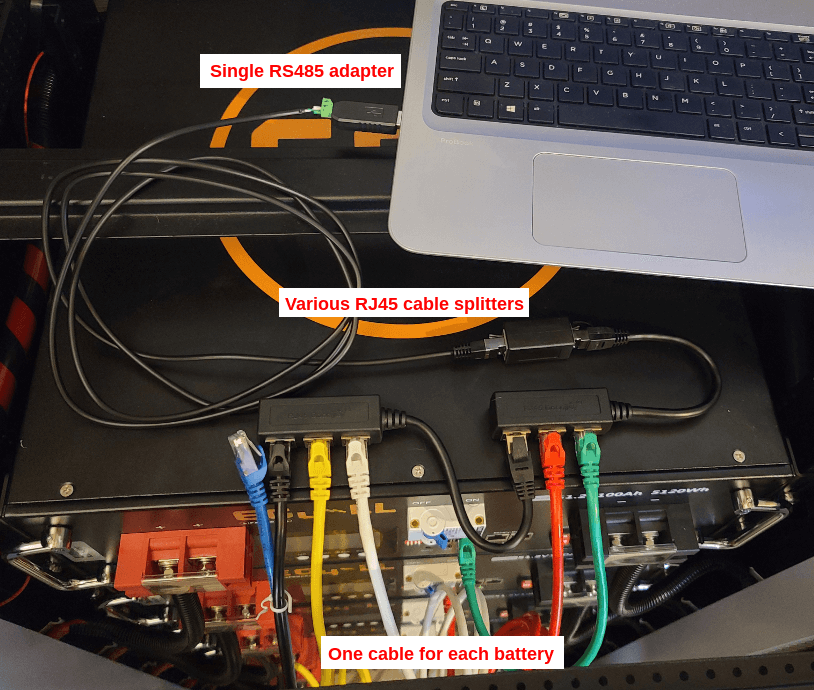

Some of the EG4 GYLL batteries have a single RS485 port. This means we have to wire the ports of all batteries physically into a single cable. When selecting a RJ45 splitter ensure that it simply connects the pins of the ports together. There shouldn't be an electronic board inside such as a network hub that receives and sends messages. This is RS485, not ethernet!

EG4 GYLL top RS485 top view EG4 GYLL top RS485 front view

Troubleshooting

Some users reported the dip switches in their EG4 battery manual are the wrong way around. If you are having trouble reading your battery, consider ON might be OFF and/or the first dip switch might be the last.

If you are having trouble reading your batteries and you have a windows laptop, we recommend testing your setup with the official software provided by Signature Solar. If your laptop is able to read the batteries, then SolarAssistant will also be able to read them.

You should not have any gaps in your battery addresses, meaning if address 3 is missing, then SolarAssistant will only read up to address 2.

Signature Solar EG4 page - Scroll down to "Resources" to download software.

Signature Solar EG4 monitoring software setup video
