RS485 port

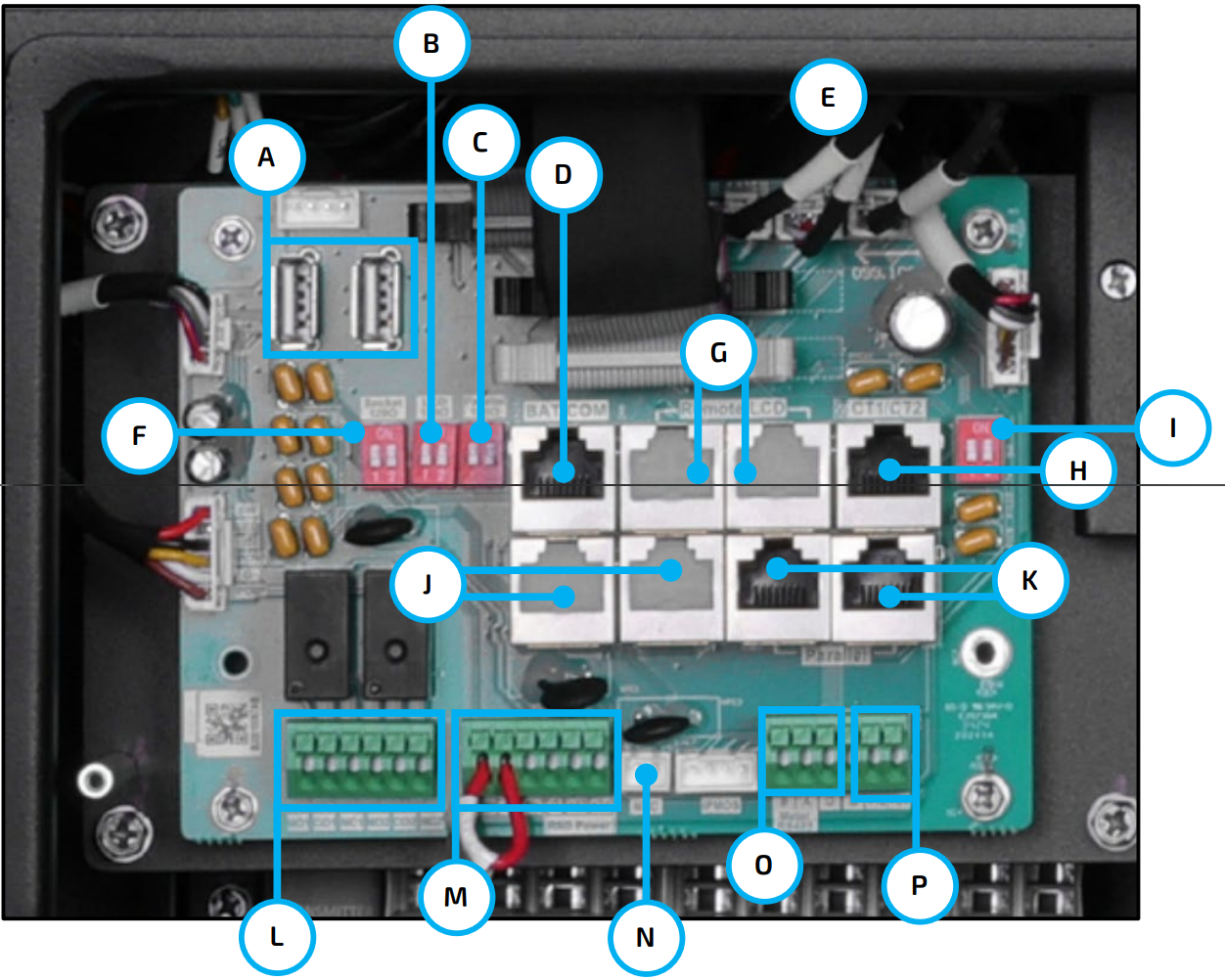

When it comes to these inverters, you will need an RS485 self crimp USB cable using the push in terminals, labeled as "O" in the image below:

You can also read more about this connection method here, or you can watch a video tutorial here.

Steps in SolarAssistant

On the SolarAssistant configuration page, select "Luxpower" as your inverter model.

Select the USB port where your inverter is connected. If you have multiple inverters, you need to multi-select multiple USB ports.

Click connect:

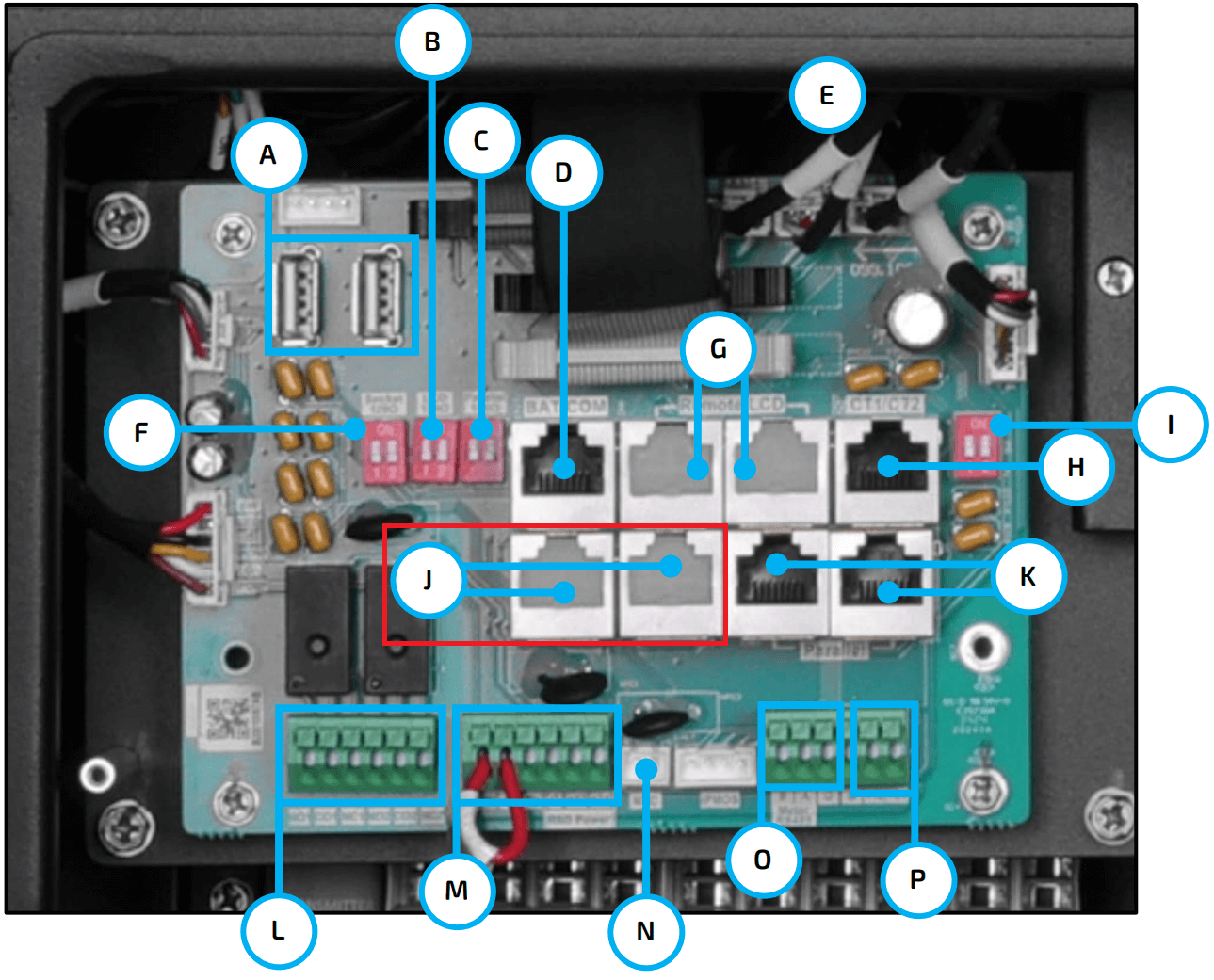

Parallel installations

With Luxpower inverters you will need to connect each inverter with its own cable.
