3000EHV-48 All-In-One Off-Grid Inverter
3000EHV-48 All-In-One Off-Grid Inverter
EG4
3000-EHV-48
Overview › RS232

RS232/COM port

Use a Voltronic USB RS232 cable cable plugged into the inverter port labelled "RS232" or "COM".

Alternatively you can use the WiFi dongle cable with a USB serial cable

Steps in SolarAssistant

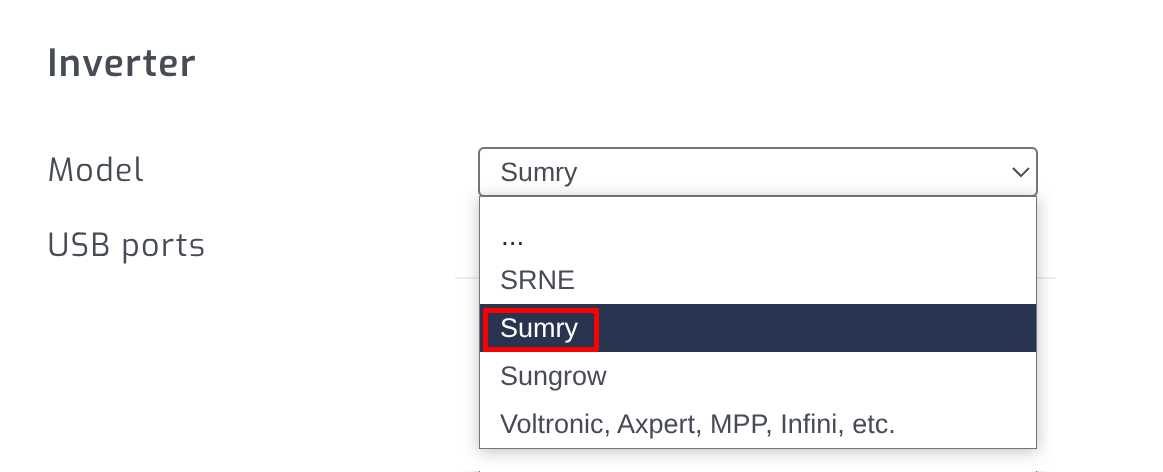

On the configuration page, select "Sumry" as your inverter model.

SolarAssistant Sumry inverter selection

The cable you plugged in should show up as a USB port:

Select FTDI RS232 USB ports

Click connect:

Select connect

Parallel installations

With these inverters you will need to connect each inverter with its own cable.
