Inverters › Anenji › All-In-One Solar Charge
All-In-One Solar Charge
All-In-One Solar Charge
Anenji
ANJ-3600W-LV
ANJ-3600W-LVP
ANJ-6500W-LV
ANJ-6500W-LVP
Overview › USB type B

USB type B port

The USB port of the inverter is a USB type B port. It's a common cable found in many electronic stores. It's often called a printer USB cable.

Voltronic USB Type B cable
SRNE USB type B port

Steps in SolarAssistant

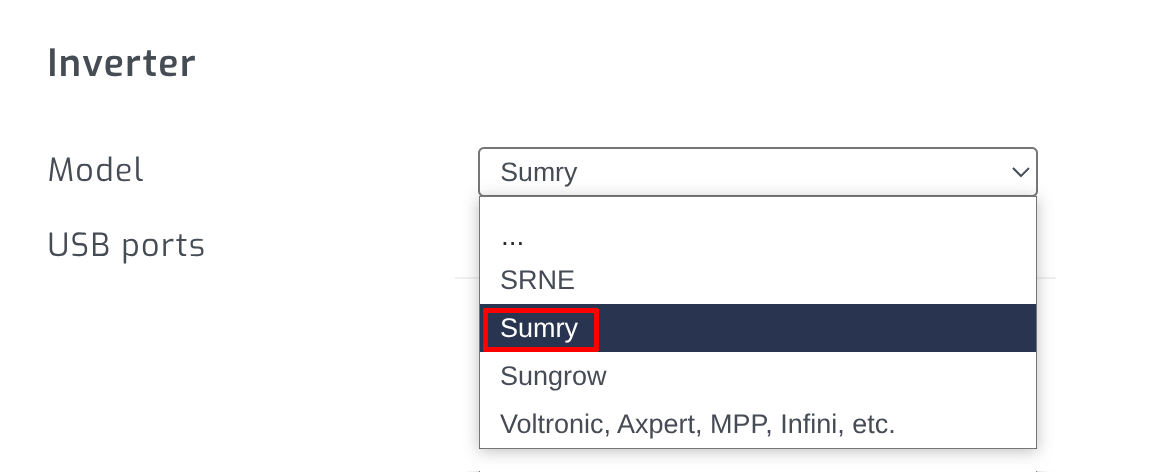

On the configuration page, select "Sumry" as your inverter model.

SRNE inverter selection

Select the USB port(s) where you have the inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With these inverters you only need to connect one inverter to read all parallel inverters regardless of whether you use the COM/RS485 port or the USB type B port.
