Axpert MKS 5kW 48V
Axpert MKS 5kW 48V
Voltronic
MKS-5000-48
Automations Cloud bypass MQTT API Read via cable Real time Setting control
Overview › USB type B

USB type B port

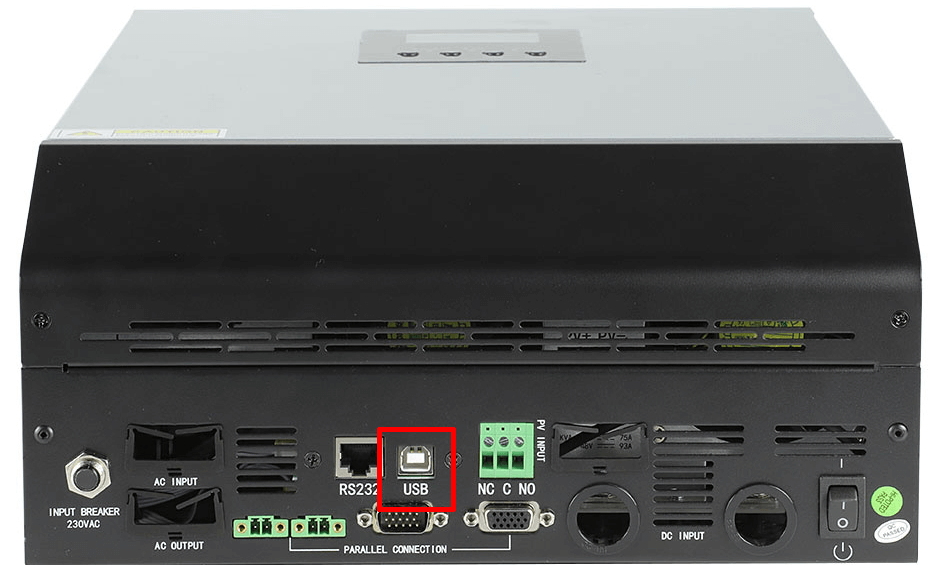

The USB type B port is located at the bottom of the inverter. The cable required to connect this port to SolarAssistant is a USB type B cable which is a common cable found in many electronic stores. It is often referred to as a "printer cable".

Voltronic USB type B portVoltronic USB Type B cable

Steps in SolarAssistant

On the configuration page, select "Voltronic" as your inverter model.

SolarAssistant Voltronic inverter selection

Select the USB port(s) where you have Voltronic inverters connected.

Select Voltronic USB ports

Click connect:

Select connect

Parallel installations

You only need to connect one inverter to read all parallel inverters regardless of which monitoring port you use.

If you have a parallel installation but all inverters are not showing in SolarAssistant, then check if their serial numbers are perhaps exactly the same by connecting one inverter at a time and going to the settings page. If their serial numbers are the same, then each will have to be connected with it's own USB cable.

Troubleshooting

If you have any issue, please try the official WatchPower or SolarPower application from a laptop. If it works with these official applications, then it should work with SolarAssistant.
