S6 Hybrid Inverter
S6 Hybrid Inverter
Solis
S6-EH1P6K-L-PLUS
Overview › dongle

WiFi dongle

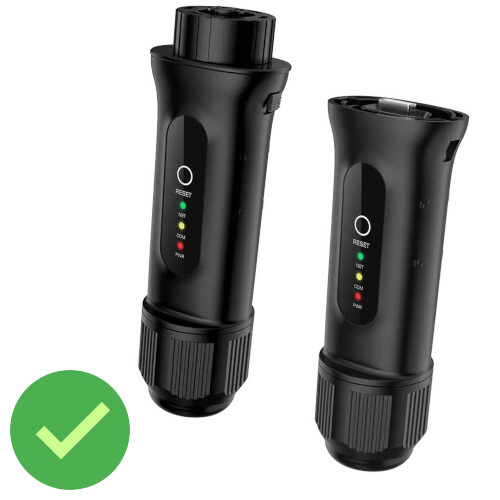

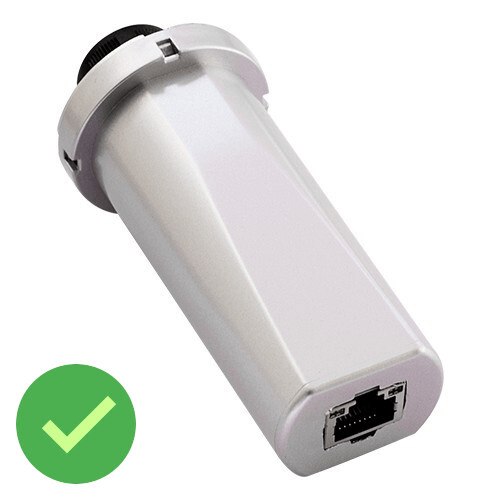

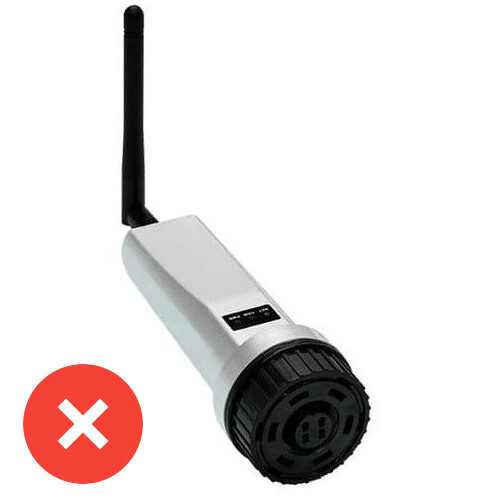

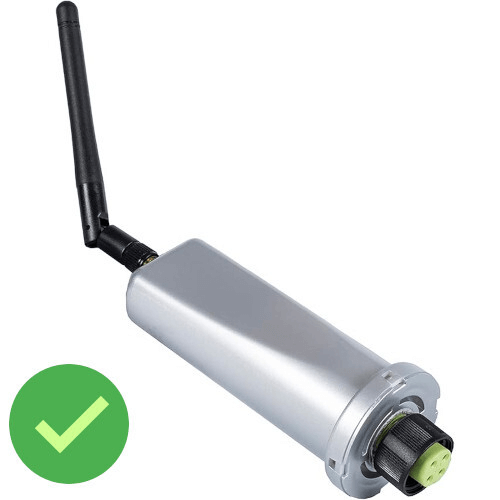

We support Solis inverters via RS485 and WiFi dongle. The dongles that are supported at the moment are S2-WL-ST, DLS-W and DLS-L.

dls-ldls-ws2-wifi-sts3-wifi-st

First, it is important to make sure that the SolarAssistant and the Solis dongle are connected to the same Access point or router. This means you will have to have the initial setup for the dongle to get it connected to the router. Once you have them both connected to the same router, open the configuration page.

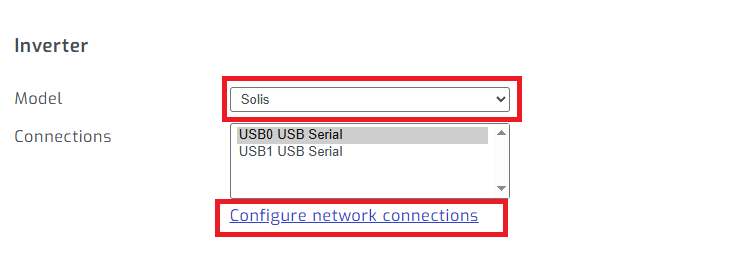

On the SolarAssistant configuration page, select "Solis" inverter and then "Configure network connections".

Then, open the Configure network connections page.

Select wifi configuration

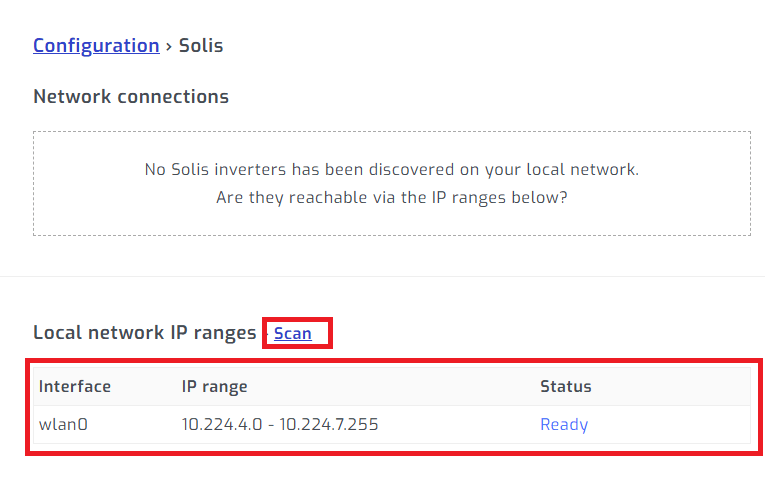

Once on that page, you should see a scan button. This will scan the connected network for Solis dongles.

Scan network

Note: If you are not finding a dongle, check that the dongle is using an IP address within the range shown, and there is a network log on the right-hand side to help with diagnosis.

Once you have the dongle added to the list, save and highlight the device on the configuration tab, then click connect:

Select connect
