HP3
HP3
Livoltek
HP3-5KD2, HP3-5KL2, HP3-6KD2, HP3-6KL2, HP3-8KD2, HP3-8KL2, HP3-8KS1LV, HP3-9.9KD2, HP3-9.9KL2, HP3-10KD2, HP3-10KL2, HP3-10KS1LV, HP3-12KD2, HP3-12KL2, HP3-12KS1LV, HP3-14.9KL2, HP3-14.9KT2, HP3-15KD2, HP3-15KL2, HP3-15KM2, HP3-15KS1LV, HP3-20KM2158, HP3-20KT2, HP3-25KM2159, HP3-25KT2, HP3-29.9KT2, HP3-30KM2160, HP3-30KT2, HP3-36KM2, HP3-40KS1, HP3-50KS1, HP3-60KS1
Overview › RS485


RS485 port

The USB port on the inverter can not be used for monitoring. You need to connect it via an RS485 cable by screwing the RS485A and RS485B wire into the communication port. Each inverter will require it's own USB cable.

You can also explore alternative RS485 adapters that might be available locally in your country.

HP3 RS485 port

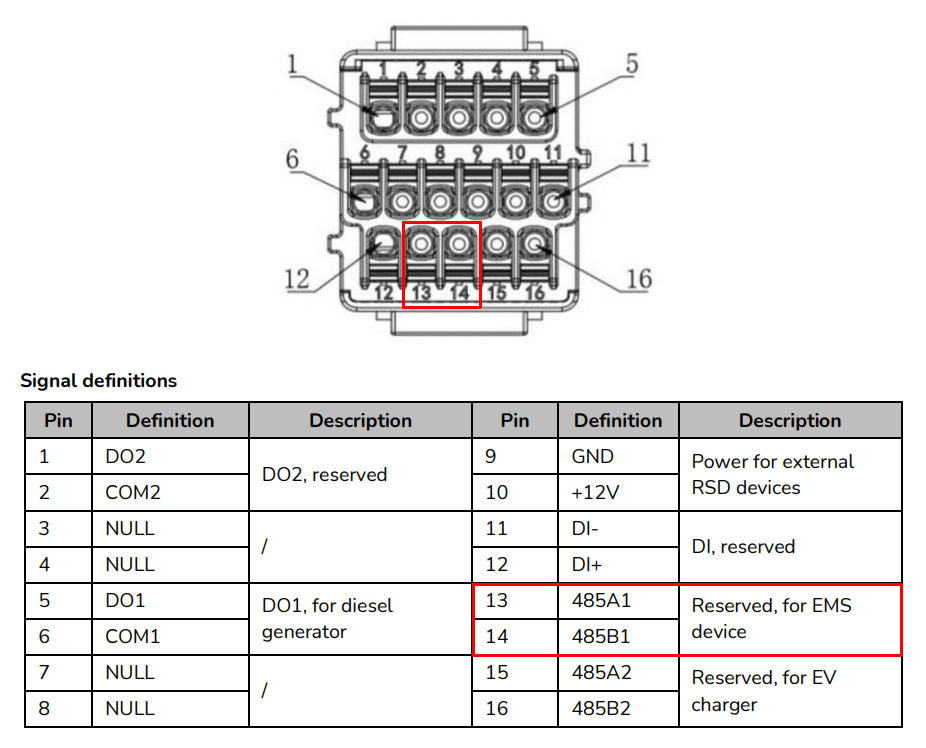

HP3 RS485 pinout

Steps in SolarAssistant

On the configuration page, select "Livoltek" as your inverter model.

Select livoltek inverter

Devices connected via USB will show up. Select all ports that are Livoltek inverters.

Select Livoltek ports

Click connect:

Select connect

Parallel installations

With Livoltek inverters you will need to connect each inverter with its own cable.
