Overview › RS485

RS485 port

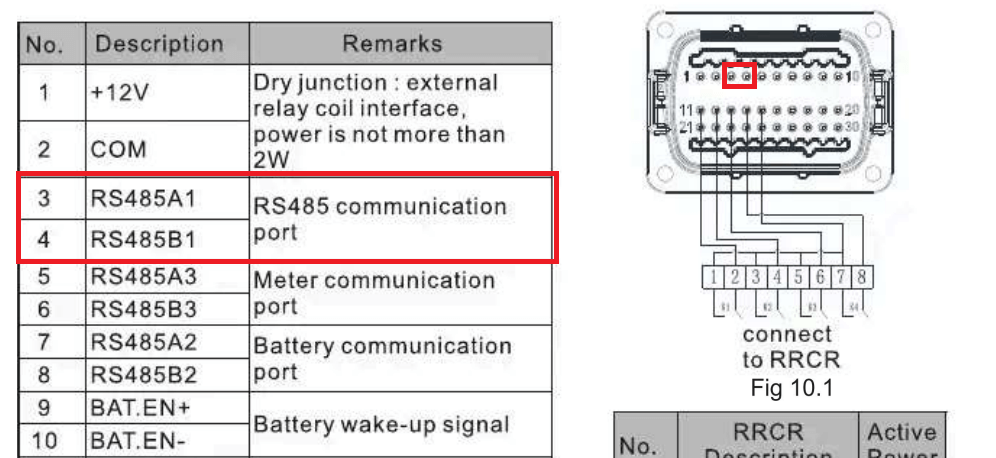

The USB port on the inverter can not be used for monitoring. You need to connect it via an RS485 cable by screwing the RS485A and RS485B wire into pin 3 and 4 of the communication port. Each inverter will require it's own USB cable.

You can also explore alternative RS485 adapters that might be available locally in your country.

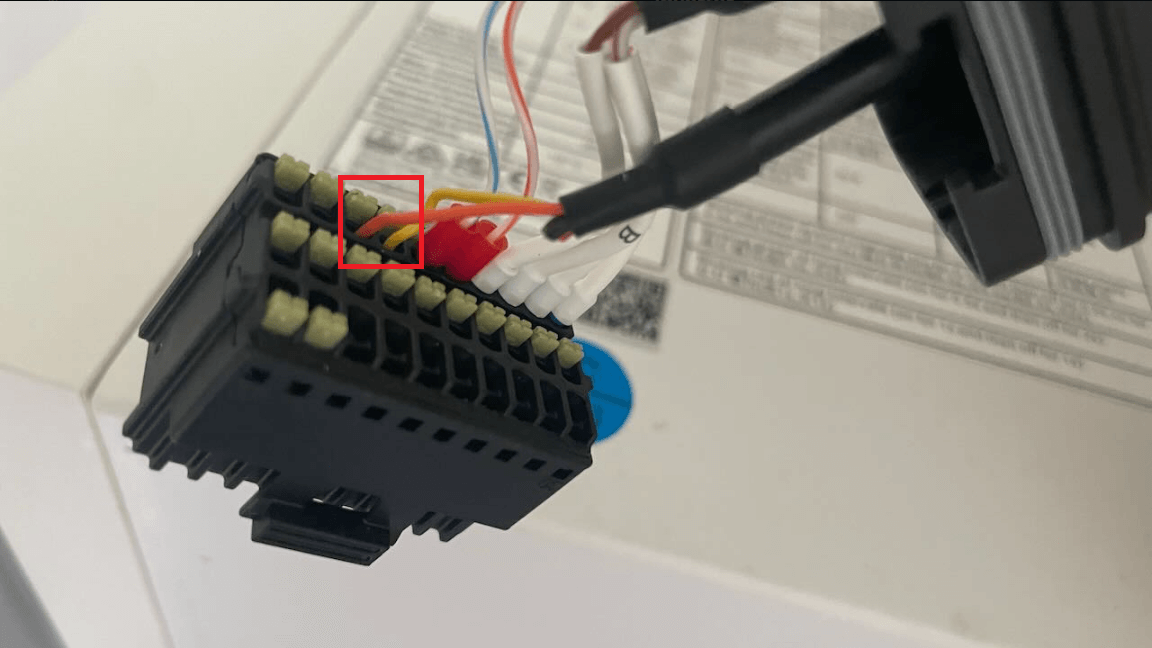

MOD RS485 portMOD RS485 port

Steps in SolarAssistant

On the configuration page, select "Growatt" as your inverter model.

Select Growatt inverter model

Devices connected via USB will show up. Select all ports that are Growatt inverters.

Select Growatt SPF USB ports

Click connect:

Select connect

Parallel installations

With Growatt inverters you will need to connect each inverter with its own cable.
