Inverters › Growatt › MIN TL-XH-US
MIN TL-XH-US
MIN TL-XH-US
Growatt
Growatt MIN 3000 TL-XH-US
Growatt MIN 3800 TL-XH-US
Growatt MIN 5000 TL-XH-US
Growatt MIN 6000 TL-XH-US
Growatt MIN 7600 TL-XH-US
Growatt MIN 8200 TL-XH-US
Growatt MIN 9000 TL-XH-US
Growatt MIN 10000 TL-XH-US
Growatt MIN 11400 TL-XH-US
Overview › RS485


RS485 port

The USB port on the inverter can not be used for monitoring. You need to connect it via an RS485 cable by screwing the RS485A and RS485B wire into the communication port. Each inverter will require it's own USB cable.

You can also explore alternative RS485 adapters that might be available locally in your country.

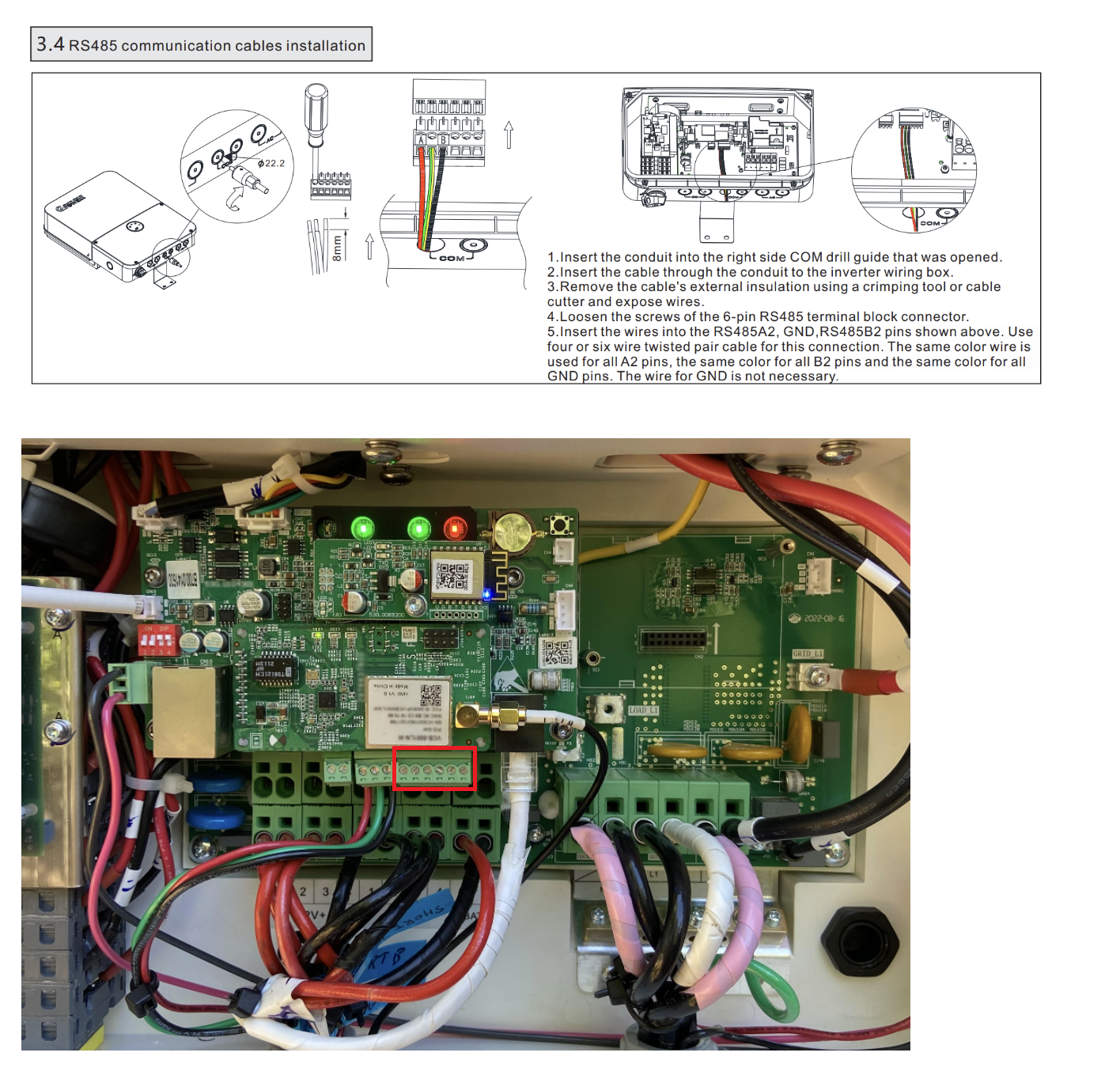

MIN RS485 port

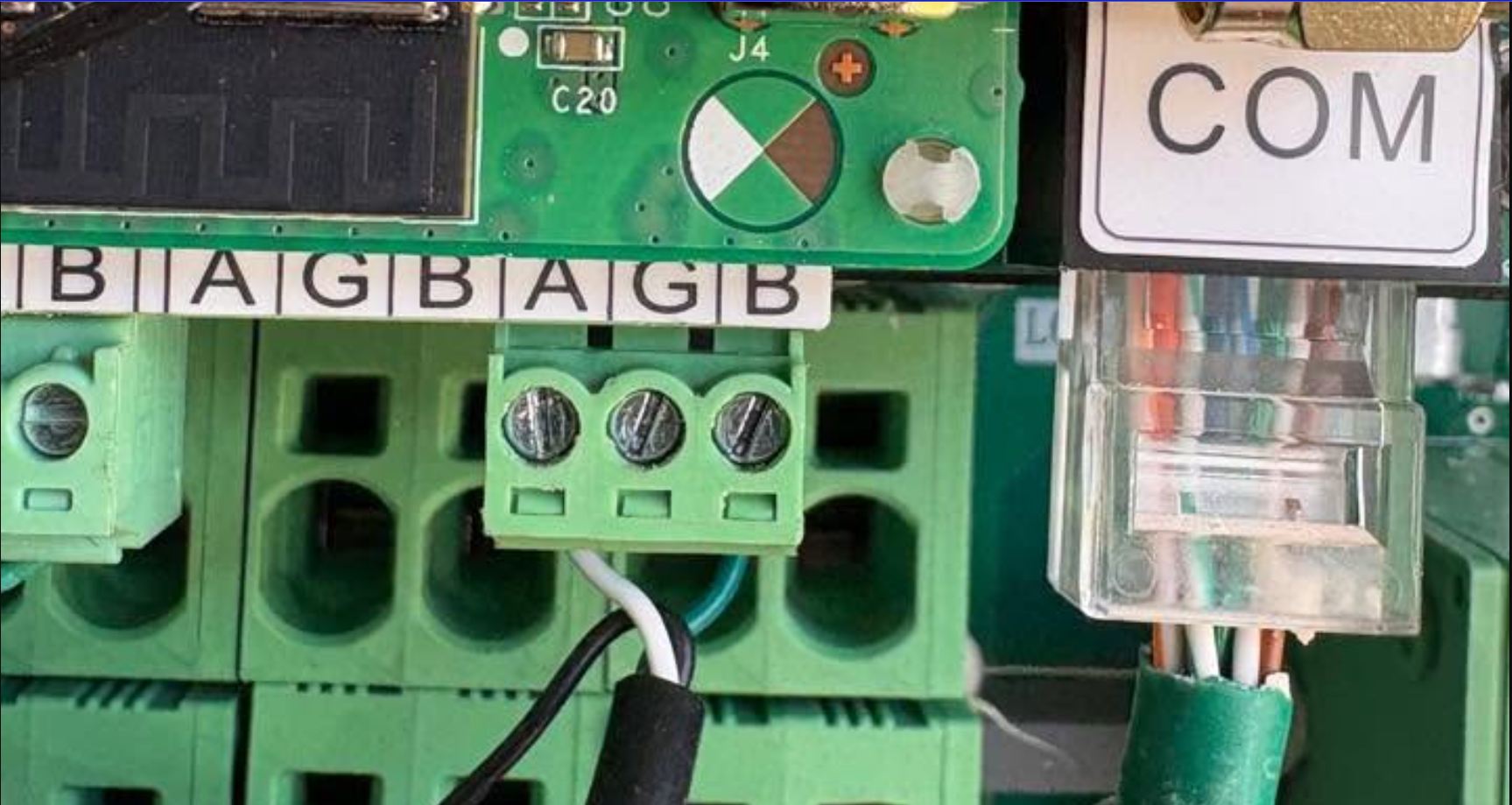

You need to connect using the green terminal as shown below:

MIN RS485 port

Steps in SolarAssistant

On the configuration page, select "Growatt" as your inverter model.

Select Growatt inverter

Then, make sure you select the relevant Growatt inverter model.

Select Growatt inverter model

Devices connected via USB will show up. Select all ports that are Growatt inverters.

Select Growatt SPF USB ports

Click connect:

Select connect

Parallel installations

With Growatt inverters you will need to connect each inverter with its own cable.

Troubleshooting

Please note that these units come with an AI mode that can cause issues. If this is enabled, it supersedes changes to the inverter's settings. If you are experiencing issues with your inverter settings, please disable the AI mode.
