Hybrid Solar Charger
Hybrid Solar Charger
Anenji
GES48100M200-500
GES48100M200-500P
GES48120M220-500
GES48120M220-500P
Overview › RS485

RS485 port

When it comes to these inverters, you will need an Self-crimp RS485 cable using the RJ45 pin configuration below:

SNRE RS485 Pins

If you buy any random USB RS485 RJ45 cable on Amazon, Ebay, Takealot, etc. which doesn't specifically state that it supports the inverter, it will most likely not work.

Steps in SolarAssistant

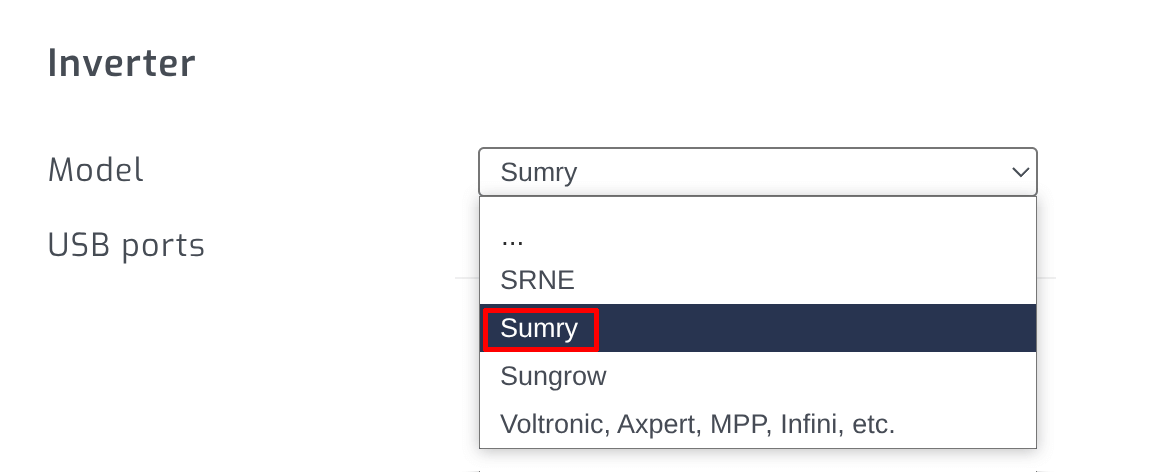

On the configuration page, select "Sumry" as your inverter model.

SRNE inverter selection

Select the USB port(s) where you have inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With these inverters you will need to connect each inverter with its own cable.
