Connect and configure EASUN/PowMr/Anern inverters
Overview
Follow the steps below to connect one of the following inverters to SolarAssistant:
- Anern
- EASUN
- PowMr
- Powland
- Sumry
Step 1 - Identify original manufacturer
Original manufacturer | Supplier | Model |
Voltronic | EASUN |
ISolar MLV ISolar SP(H/L/P/R/S/V) ISolar SM(G/H/K/P/R/S/V/W) ISolar SV, PVL IGrid SV, VE, SS |
PowMr |
POW-HVM POW-VM POW-MAX MPS-V MAX MPS-V PLUS |
|
SRNE | EASUN |
ISolar MLV-U ISolar SMX IGrid SX WP |
Sumry | Anern |
Hybrid On/Off grid |
EASUN |
ISolar SMG ISolar SML |
|
PowMr | POW-HVM |
* The PowMr 4500 / 6500 inverter is not supported.
Step 2 - Source monitoring cable
Original manufacturer | Inverter port | Cable |
Voltronic | RS232 | RS232 USB cable |
USB port |
Micro USB cable USB Type B |
|
SRNE | USB port * | USB Type B |
RS485 WiFi port | RS485 USB cable (Pin 7 RS485A, Pin 8 RS485B) | |
Sumry | USB type B | Not usable for monitoring |
RS232 WiFi port |
RS232 USB cable WiFi dongle DB9 cable + USB serial cable |
* With the new EASUN IGrid SX WP which is an SRNE HES Series inverter the USB type B port doesn't work for monitoring, only the RS485 WiFi port can be used.
Step 3 - Start monitoring

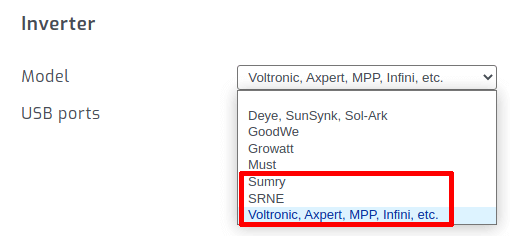

On the SolarAssistant configuration page, select your inverter.
Click connect:
