Overview › USB type B

USB type B port

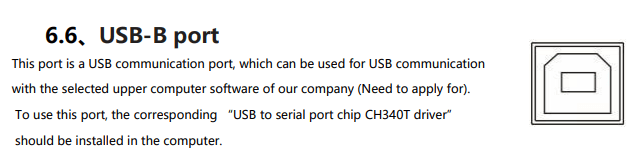

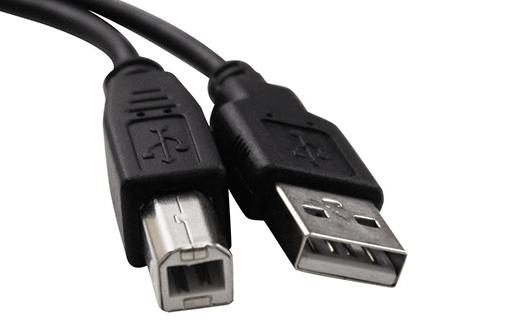

The USB port of SRNE inverters is a USB type B port. It's a common cable found in many electronic stores. It's often called a printer USB cable.

Voltronic USB Type B cableSRNE USB type B port

Steps in SolarAssistant

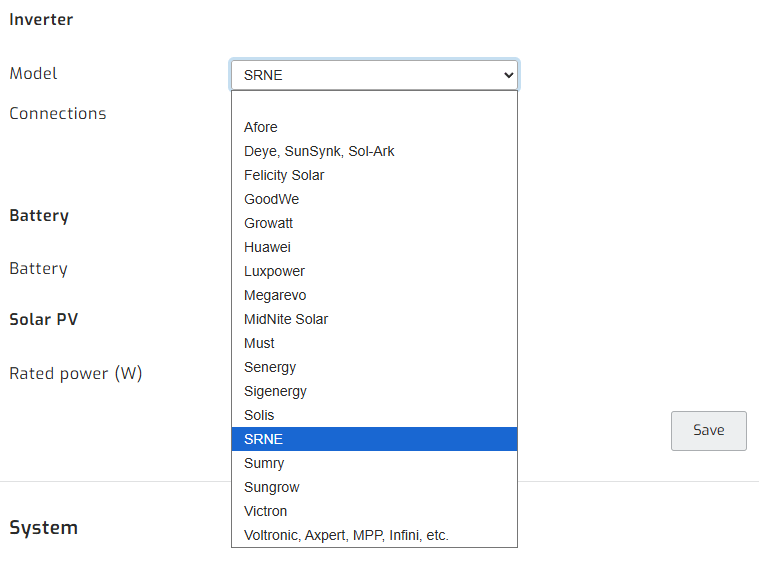

On the configuration page, select "SRNE" as your inverter model.

SRNE inverter selection

Select the USB port(s) where you have SRNE inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With SRNE inverters you only need to connect one inverter to read all parallel inverters regardless of whether you use the COM/RS485 port or the USB type B port.

Troubleshooting

If you have any issue, please try the official SolarStationMonitor application from a laptop. If it works with these official applications, then it should work with SolarAssistant.
