Connect and configure Growatt SPH inverters

Overview

Follow the steps below to connect one of the following inverters to SolarAssistant:

  • Growatt SPH single phase
  • Growatt SPH 3 phase

Step 1 - Connect inverter monitoring cable

Option A - If your RS232 port is not occupied by the Growatt WiFi dongle

A USB serial cable can be plugged into WiFi RS232 port located on the bottom of the inverter. This is a normal USB serial cable available from most electronic stores.

RS232 DB9 USB cable Growatt RS232 port

Option B - The RS485-2 port

In your inverter settings. Set the RS485 port setting to VPP mode (see troubleshooting below).

We don't currently sell an RS485 cable for this port, but you can make your own cable by buying a USB to RS485 adapter and cutting a normal computer network cable or crimping an RJ45 plug.

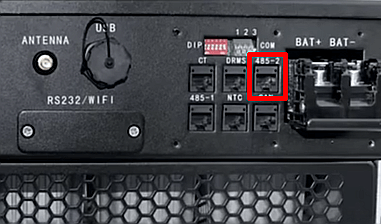

Growatt SPH pinout Growat SPH RS485-2 port

Option C - If you have a RS485-3 or VPP port (typically found on the SPH 3 phase)

We don't currently sell an RS485 cable for this port, but you can make your own cable by buying a USB to RS485 adapter and cutting a normal computer network cable or crimping an RJ45 plug.

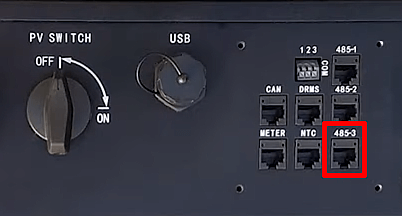

Growatt SPH pinout Growat SPH RS485-3 port

Step 2 - Configure SolarAssistant to connect to a Growatt SPH inverter

On the configuration page, select "Growatt" as your inverter model.

SolarAssistant Growatt inverter selection

Each RS485 USB cable will show up as a USB device. Select all ports that are connected to Growatt inverters.

SolarAssistant Growatt USB ports

Click connect:

Select connect

Troubleshooting

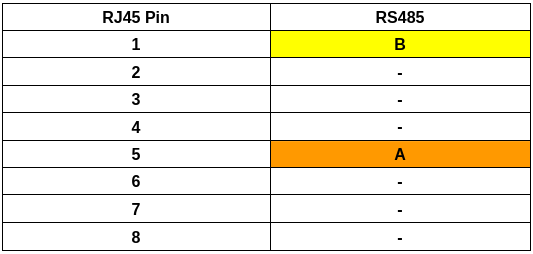

If you do not get a reponse from your SPH inverter via RS485, try pins 4 and 5 instead as shown in the official Growatt SPH documentation below.

Growat SPH pinout

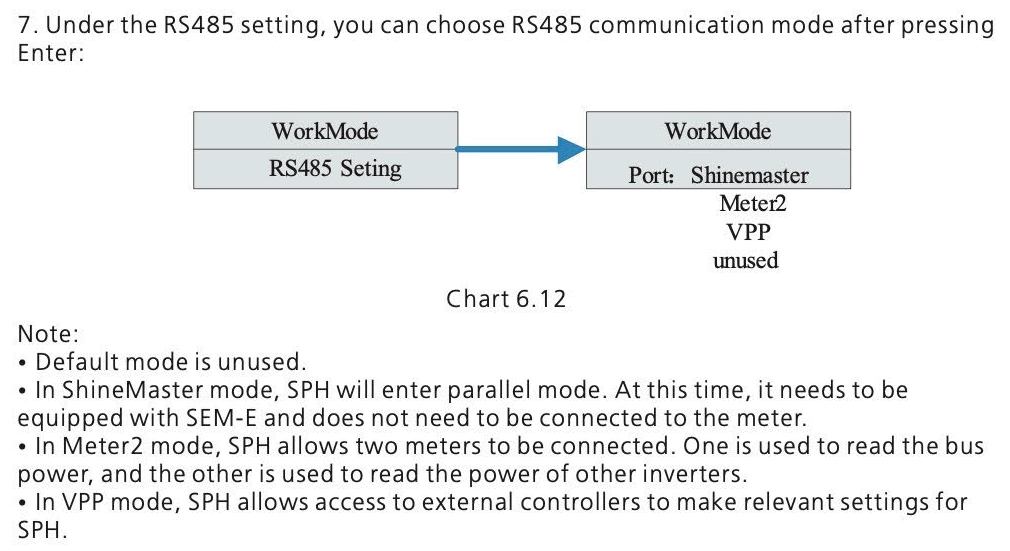

If you are unable to find VPP mode on your inverter, it should be available under WorkMode/RS485 as described in the Growatt SPH documentation:

Growatt SPH VPP mode
