Shop › Device with software 1.8Ghz
Device with software 1.8Ghz
$180.06
Dispatch within 1 day from Pretoria, South Africa
Nationwide courier: $4.96
International DHL courier: $49.68

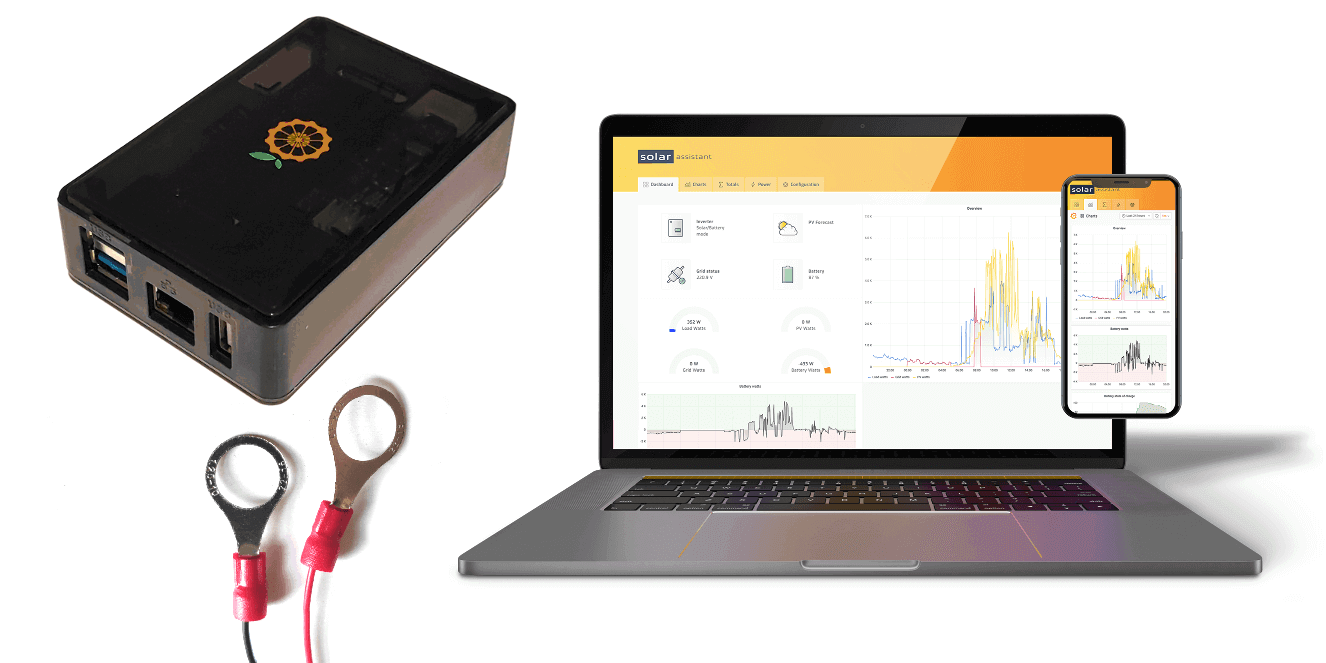

Orange Pi device fully assembled and preloaded with SolarAssistant. Perpetual license, no monthly fees. Inverter USB cable not included.

This is the easiest way to get started. See our guides below:

Select power supply

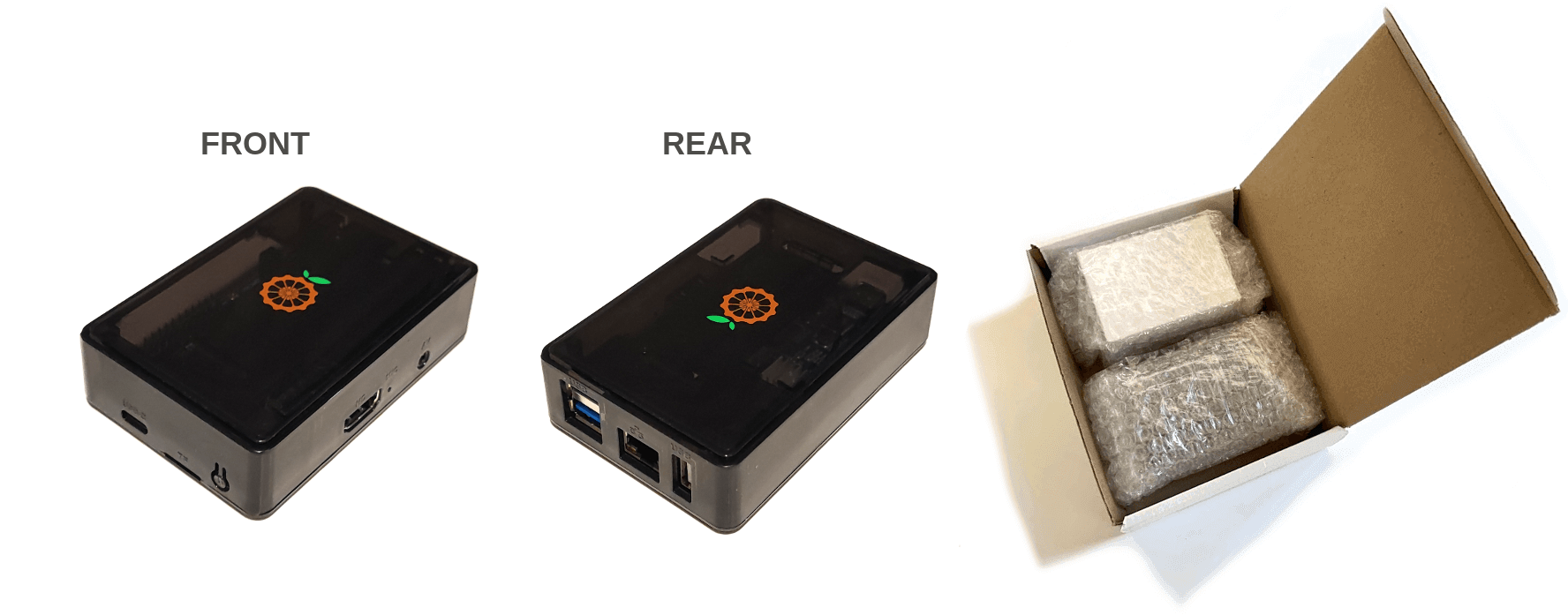

Fully assembled, preloaded and packaged - Ready to use

Components used

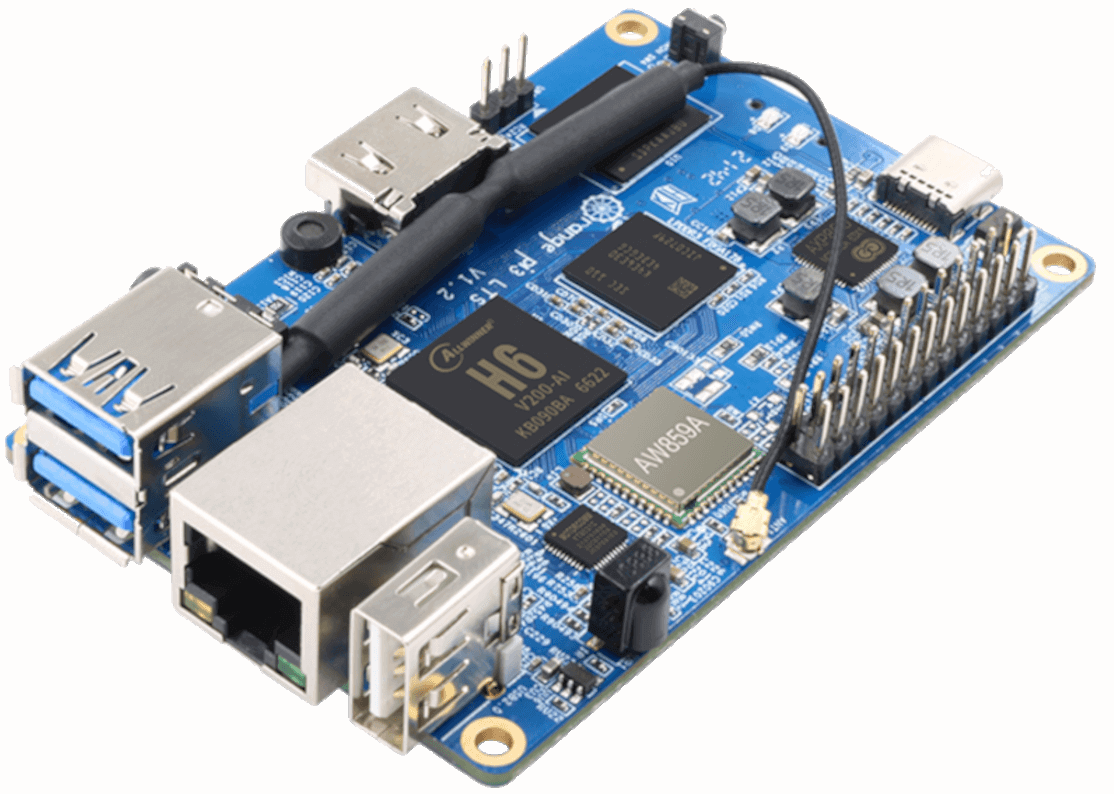

Orange PI 3 LTS

The Orange PI 3 LTS is a new board that was released beginning of 2022. It's the first board where we have added the option of HDMI screen output because it's powerful enough to provide a fast responsive interactive experience while performing real-time monitoring of multiple solar devices.

  • 1.8Ghz Quad-core 64-bit processor
  • 2GB SDRAM
  • 8GB eMMC onboard storage
  • 2.4Ghz and 5.0Ghz WiFi
  • 1Gbps Ethernet
  • 3x USB ports
  • HDMI output

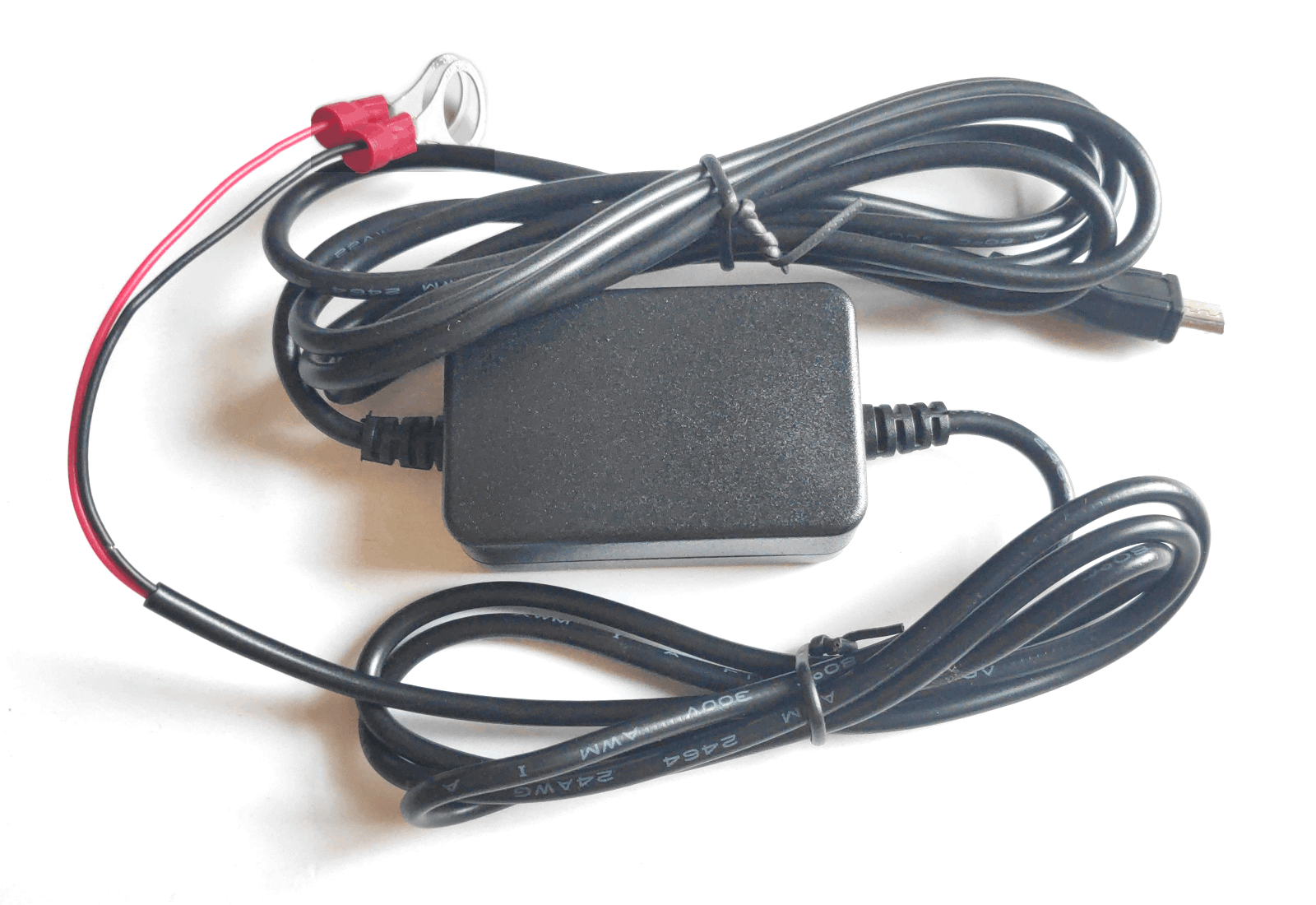

9-60V DC USB power supply (Option A)

Power your monitoring device directly from your battery. It allows uninterrupted monitoring even if the inverter transfers into fault mode or disconnects AC output due to reaching low battery cutoff.

  • Suitable for 12V, 24V and 48V batteries
  • 9-60V DC input via ring connector (10mm diameter)
  • 5V 3A USB type C output
  • Length: 2.5m

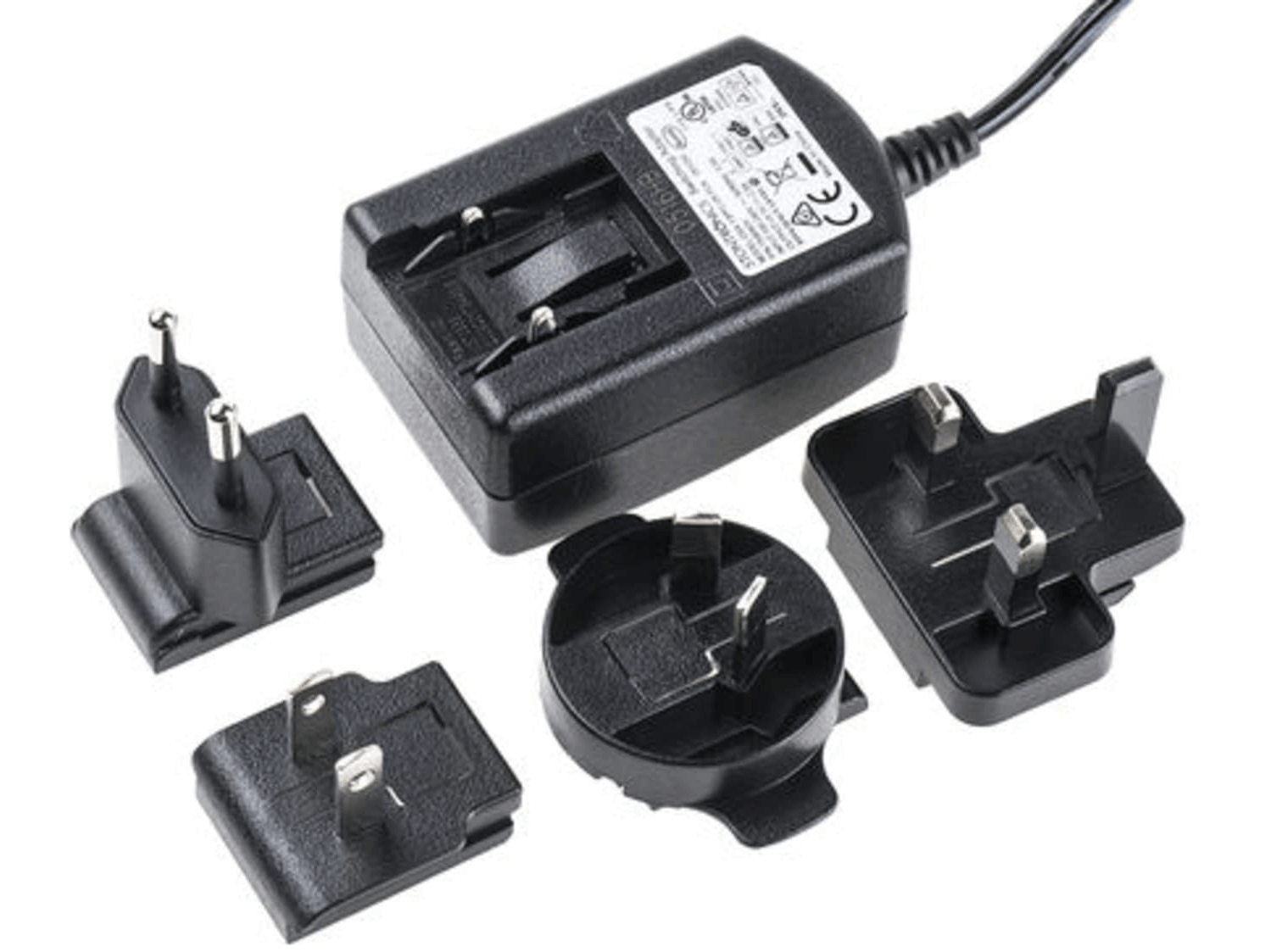

Official Raspberry PI power supply (Option B)

A high quality power supply is important for stable 24/7/365 operation as voltage dips can cause USB errors. This power supply includes four interchangeable mains adaptors for Europe/South Africa, UK, Australia and United States.
