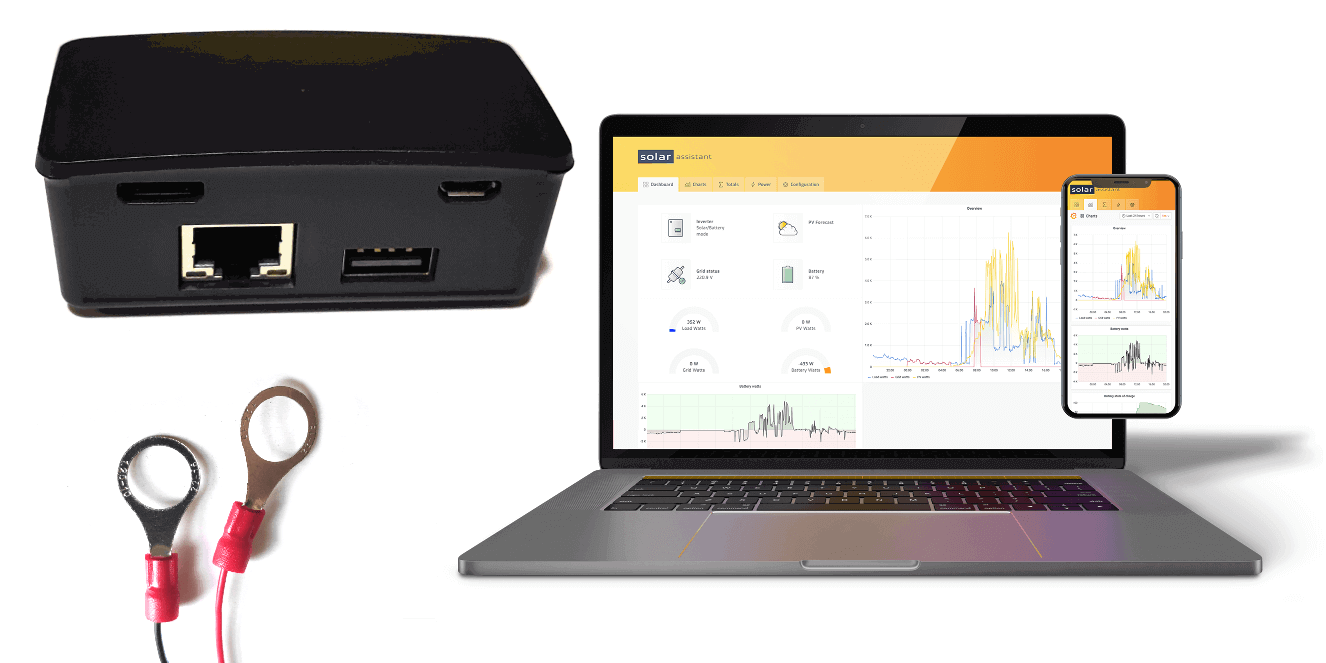

Raspberry Pi device fully assembled and preloaded with SolarAssistant. Perpetual license, no monthly fees. Inverter USB cable not included.
This is the easiest way to get started. See our guides below:

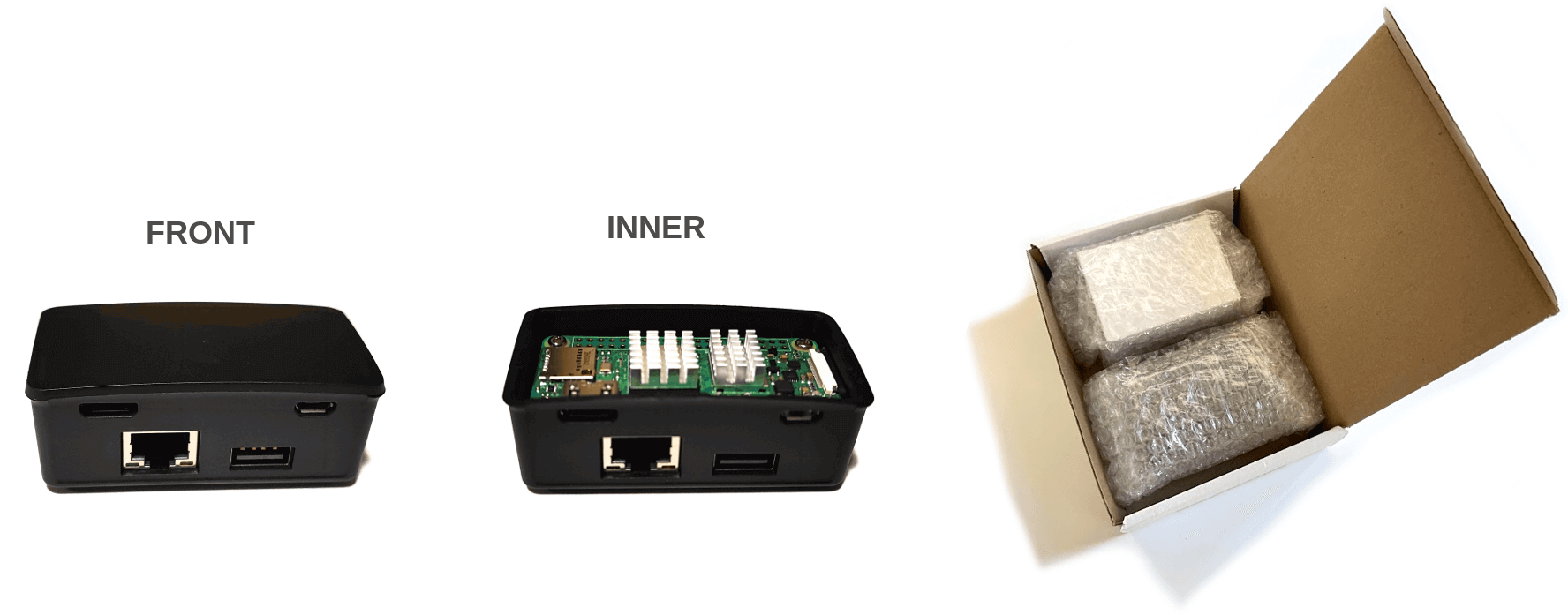

Fully assembled, preloaded and packaged - Ready to use

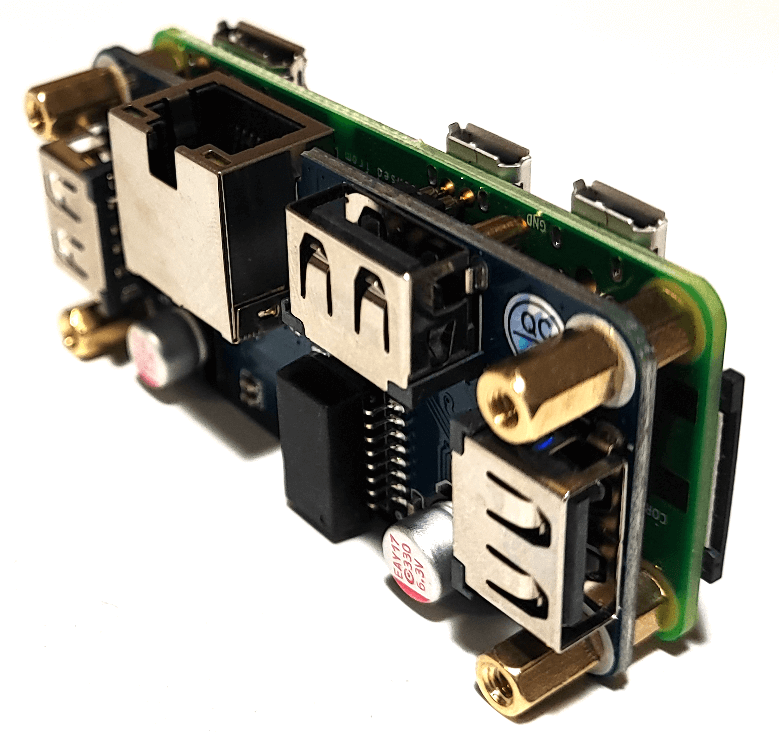

Raspberry PI Zero 2 W with Ethernet and 3x USB
- 1GHz Quad-core 64-bit processor
- 512MB SDRAM
- WiFi, 100M Ethernet and Bluetooth
- 3x full size USB ports

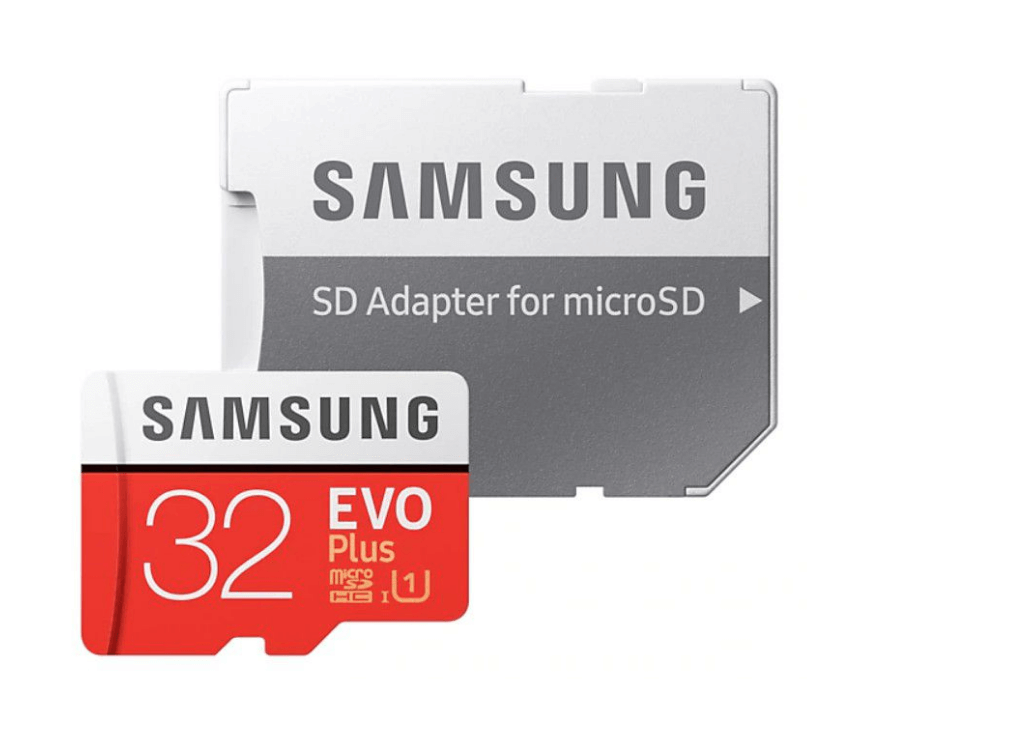

SamSung EVO 32GB MicroSDXC - preloaded with SolarAssistant
A high quality SD card is the most crucial part of a reliable, robust installation. SamSung EVO SD cards offers excellent quality and value for money. SolarAssistant performs SD card writes as sparingly as possible to ensure your monitoring device easily outlives your solar hardware. 32GB can store 10+ years of data from up to 9 inverters. The SD card will arrive installed in the device. The adapter will be placed separately in the package although it will most likely never be used.
9-60V DC USB power supply (Option A)
Power your monitoring device directly from your battery. It allows uninterrupted monitoring even if the inverter transfers into fault mode or disconnects AC output due to reaching low battery cutoff.
- Suitable for 12V, 24V and 48V batteries
- 9-60V DC input via ring connector (10mm diameter)
- 5V 3A micro USB output
- Length: 2.5m
Official Raspberry PI power supply (Option B)
A high quality power supply is important for stable 24/7/365 operation as voltage dips can cause USB errors. This power supply includes four interchangeable mains adaptors for Europe/South Africa, UK, Australia and United States.
